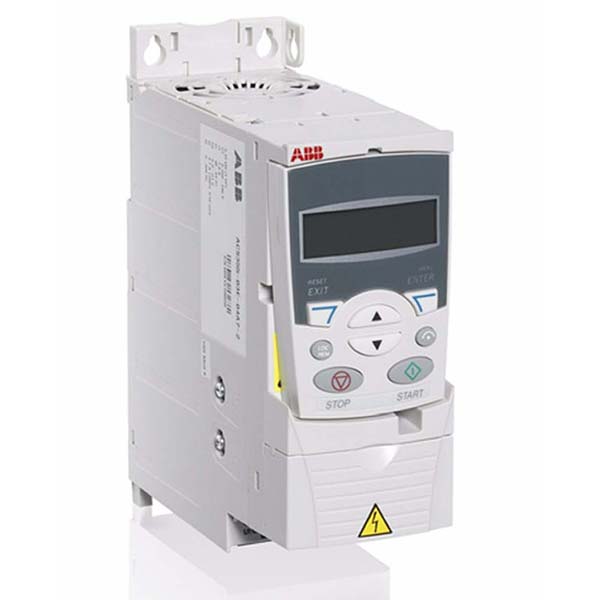

ACS355

If you are a system integrator, original equipment manufacturer or panel builder, the ACS355 is our top tier micro drive. It is focused on material handling, food and beverage applications, processing of rubber, plastic and wood. You have a cost effective, versatile drive offering the best connectivity in its class. Installation and commissioning is simple and easy, saving you labour time.

Highlights

0.37 to 22 kW/0.5 to 30 hp
Optimized design for cabinet installations saves space and installation time
Wide range of fieldbus adapters available offer flexible connectivity
Vector control capable of running both asynchronous motors and permanent magnet motors
Simple and visual sequence programming to make independent and repeatable operation sequences
Pre-defined application macros for quick basic setup
Unified height and depth of the IP20 product family simplifies wiring in cabinet installations

Download Brochure

Note
Faster and easier drive set up and commissioning

Benefit
Patented, fast, safe and trouble-free parametrization method without electricity

Note
Two soft-keys, function of which changes according to the state of the panel

Benefit
Easy commissioning, Inbuilt help-button, Fast set-up, Real-time clock, allows timed tracing of faults and setting of parameters to activate at various times of day, Easier configuration, Rapid fault diagnosis, Changed parameters menu Quick access to recent parameter changes

Note
PID controller, real-time clock, serial communications assistant, drive optimizer, start-up assistant

Benefit
Easy set up of parameters

Note
Monitors consumed energy (kWh), running hours or motor rotation

Benefit
Takes care of preventative maintenance of drive, the motor or run application

Note
Noise optimisation: Increases switching frequency of drive when drive temperature is reduced

Benefit
Considerable motor noise reduction, Controlled cooling fan: the drive is cooled only when necessary Reduces inverter noise and improves energy efficiency

Note
Patented swinging choke – matches the right inductance to the right load, thereby suppressing and reducing harmonics

Benefit
Reduces Total Harmonic Distortion (THD) emissions up to 25%

Note
Improved motor control performance

Benefit
Enables wider range of applications

Note
Category C2 (1st environment) and category C3 (2nd environment) RFI filters as standard

Benefit
no need for additional external filtering

Note
Inbuilt Modbus using RS 485 Reduced cost

Note
Inbuilt up to 11 kW

Benefit
Reduced cost

Note
Simple to install

Benefit
Reduced installation time, Easy connection of cables Secure cable connections, Easy connection to external fieldbus systems through multiple, I/Os and plug-in options

Note
Supplied separately with unit

Benefit
Quick and easy to mark mounting screw holes on installation surface

Note
ACS550 drives comply with the EU’s RoHS 2002/95/CE Directive restricting the use of certaing hazardous substances

Benefit
Environmentally friendly product
